Processor

• Supports 10th Gen Intel^® Core^™ Processors, 11th Gen
  Intel^® Core^™ Processors, Pentium^® Gold and Celeron^®
  Processors
• Processor socket LGA1200

Chipset

Intel^® Z590 Chipset

Memory

• 4x DDR4 memory slots, support up to 128GB
• Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel^®
  CPU (by JEDEC & POR)
• Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen
  Intel^® CPU (by JEDEC & POR)
• Max overclocking frequency:
  • 1DPC 1R Max speed up to 5333 MHz
  • 1DPC 2R Max speed up to 4700+ MHz
  • 2DPC 1R Max speed up to 4400+ MHz
  • 2DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

Expansion Slots

• 3x PCIe x16 slots
  • Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4
  • PCI_E1 & PCI_E3 slots (From CPU)
    • Support PCIe 4.0 for 11th Gen Intel^® CPU
    • Support PCIe 3.0 for 10th Gen Intel^® CPU
  • PCI_E5 slot (From Z590 Chipset)
    • Supports PCIe 3.0
• 2x PCIe 3.0 x1 slots (From Z590 Chipset)

Onboard Graphics

• 1x HDMI 2.0b with HDR port, supports a maximum
  resolution of 4K 60Hz
• 1x DisplayPort 1.4 port, supports a maximum resolution of
  4K 60Hz

Multi-GPU

• Supports 3-Way AMD^® CrossFire^™ Technology

Storage

• 6x SATA 6Gb/s ports (From Z590 Chipset)
• 3x M.2 slots (Key M)
  • M2_1 slot (From CPU)
    • Available only on 11th Gen Intel^® CPU
    • Supports PCIe 4.0 x4
    • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2 & M2_3 slot (From Z590 Chipset)
    • Supports PCIe 3.0 x4
    • Supports SATA 6Gb/s
    • Supports 2242/ 2260/ 2280 storage devices
    • Intel^® Optane™ Memory Ready
• Supports Intel^® Smart Response Technology for Intel^®
  Core^™ processors

RAID

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage
  devices
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

Audio

Realtek^® ALC4080 Codec

• 7.1-Channel High Definition Audio

LAN

• 1x Intel^® I225V 2.5Gbps LAN controller

WiFi & Bluetooth

Intel^® Wi-Fi 6E AX210

• The Wireless module is pre-installed in the M.2 (Key-E slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz ¹(160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth 5.2², FIPS, FISMA

1. Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.
2. Bluetooth 5.2 will be ready in WIN10 21H1.

Internal connectors

• 1x 24-pin ATX main power connector
• 2x 8-pin ATX 12V power connectors
• 1x 6-pin PCIE power connector
• 6x SATA 6Gb/s connectors
• 3x M.2 slots (M-Key)
• 1x USB 3.2 Gen 2 10Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2
  USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 Type-A connectors (supports additional 4 USB
  2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 6x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x TPM module connector
• 1x TBT connector (supports RTD3)
• 1x Tuning Controller connector

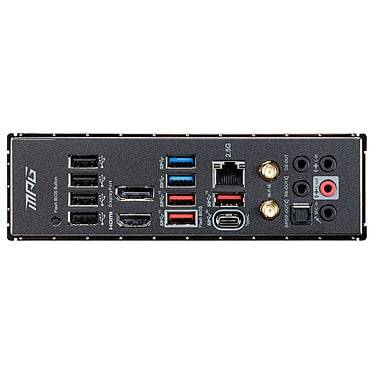

Back panel ports

Dimensions

• ATX Form Factor
• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Mounting

9 mounting holes

Operating System

• Support for Windows^® 10 64-bit

Box content
