CPU
Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Chipset
AMD A520 Chipset
Memory
- 2x DDR4 memory slots, support up to 64GB
- Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
- Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
- 1DPC 1R max speed 4600 MHz
- 1DPC 2R max speed 3866 MHz
- Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
- Supports un-buffered memory
Expansion Slot
- 1x PCIe x16 slot (PCI_E2)
- 2x PCIe 3.0 x1 slots
- The supported specification depends on installed processor.
Onboard Graphics
- 1x VGA port, supports a maximum resolution of 2048×[email protected], 2048×[email protected], 1920×[email protected]
- 1x HDMI2.1, supports a maximum resolution of 4096×[email protected]
- 1x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz
- Maximum shared memory of 16GB
Storage
AMD A520 Chipset
- 4x SATA 6Gb/s ports
- 1x M.2 slot (Key M) (from AMD Processor)
- M2_1 slot (from AMD Processor)
- Supports PCIe 3.0 x4
- Supports SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- M2_1 slot (from AMD Processor)
RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
USB
AMD A520 Chipset
- 2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
- 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
- 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio
Realtek® ALC892/ALC897 Codec
- 7.1-Channel High Definition Audio
LAN
- 1x Realtek® RTL8111H LAN controller
Internal connectors
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 4x SATA 6Gb/s connectors
- 1x Serial port connector
- 1x M.2 slot (M-Key)
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin system fan connector
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x 4-pin RGB LED connector
- 1x 3-pin RAINBOW LED connector
- 1x TPM module connector
- 1x Clear CMOS jumper

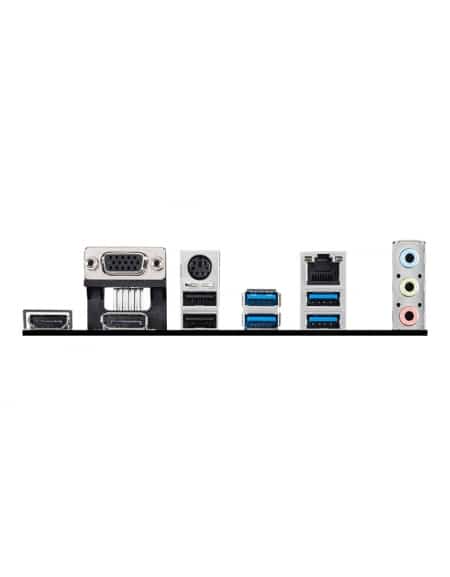

Back panel ports
- VGA
- Keyboard / Mouse
- LAN port
- HDMI
- DisplayPort
- USB 2.0 Ports
- USB 3.2 Gen 1 5Gbps Type-A
- USB 3.2 Gen 1 5Gbps Type-A
- Audio Connectors
Dimensions
- M-ATX Form Factor
- 9.6 in. x 8.3 in. (24.4 cm x 21 cm)
MOUNTING
6 mounting holes
