Processor
Supports 10th Gen Intel® Core™ and Pentium® Gold /Celeron® processors for LGA 1200 socket
Chipset
Intel® Z490 Chipset
Memory
- 4x DDR4 memory slots, support up to 128GB
- Supports 1R 2133/2666/2933 MHz
- 1DPC 1R Max speed up to 5000+ MHz
- 1DPC 2R Max speed up to 4500+ MHz
- 2DPC 1R Max speed up to 4400+ MHz
- 2DPC 2R Max speed up to 4000+ MHz
- Supports Dual-Channel mode
- Supports non-ECC mode, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
Expansion Slots
- 3x PCIe 3.0 16 slots (2 from CPU, 1 from PCH, support 16/0/4, 8/8/4)
- 2x PCIe x1 slots (from PCH)
Multi-GPU
- Supports 2-Way NVIDIA® SLI™ Technology
- Supports 3-Way AMD® CrossFire™ Technology
Storage
Intel® Z490 Chipset
- 6x SATA 6Gb/s ports
- 3x M.2 slots (Key M)
- M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
- M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
- M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
- Intel® Optane™ Memory Ready
- Supports Intel® Smart Response Technology for Intel Core™ processors
RAID
Intel® Z490 Chipset
- Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 5 for M.2 PCIe storage devices
USB
Intel® Z490 Chipset
- 4x USB 3.2 Gen 2 10Gbps ports (3 Type-A ports on the back panel, 1 Type-C internal connector)
- 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal USB connector)
- 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
ASMedia® 3241 chipset
- 1x USB 3.2 Gen 2×2 20Gbps Type-C port on the back panel
Audio
Realtek® ALC1220 Codec + ESS SABRE9018Q2C combo DAC
- 7.1-Channel High Definition Audio
- Supports Optical S/PDIF output
LAN
- 1x Realtek® 8125B 2.5G LAN controller
- 1x Intel® I219V 1G LAN controller
WiFi & Bluetooth
Intel® AX201
- MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
- 802.11ax; WiFi 6 pre certified
- Bluetooth 5.1, FIPS, FISMA
- 1x M.2 Socket with E key (Wi-Fi mode)
Internal connectors
- 1x 24-pin ATX main power connector
- 2x 8-pin ATX 12V power connectors
- 6x SATA 6Gb/s connectors
- 3x M.2 slots (M-Key)
- 1x USB 3.2 Gen 2 10Gbps Type-C port
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump connector
- 6x 4-pin system fan connectors
- 1x front panel audio connector
- 2x system panel connectors
- 1x Chassis Intrusion connector
- 1x slow mode jumper
- 1x power button
- 1x reset button
- 1x 4-pin RGB LED connector
- 2x 3-pin RAINBOW LED connectors
- 1x 3-pin CORSAIR LED connector

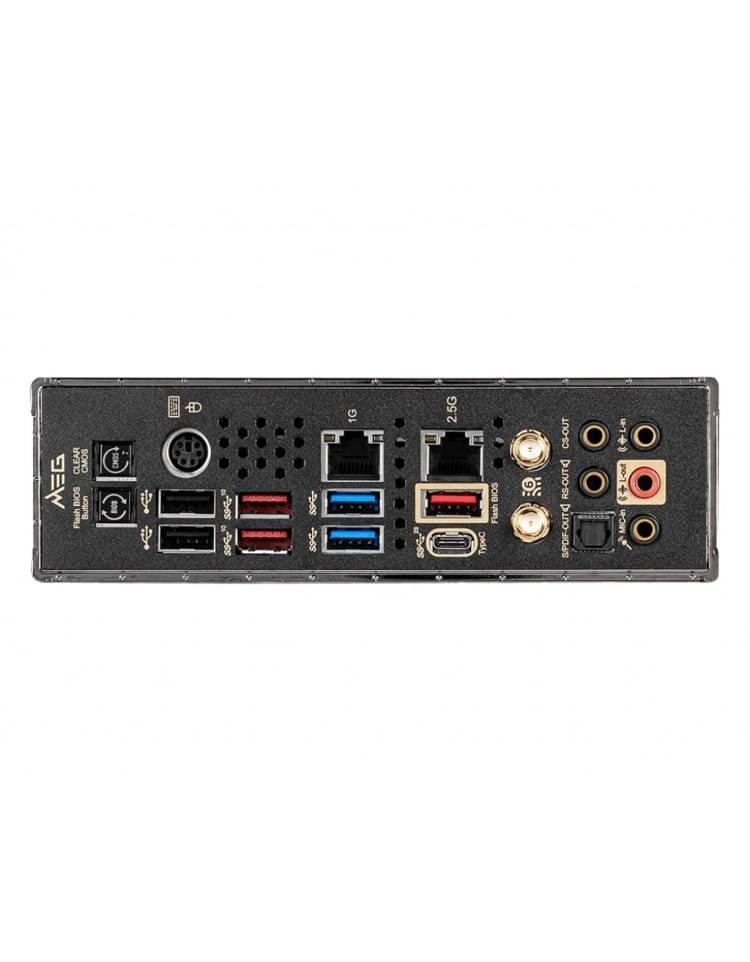

Back panel ports
- Clear CMOS Button
- PS/2 Keyboard / Mouse Port
- 1G LAN
- 2.5G LAN
- Wi-Fi /Bluetooth Antenna Connectors
- HD Audio Connectors
- Flash BIOS Button
- USB 2.0 Ports
- USB 3.2 Gen 2 10Gbps (Type-A)
- USB 3.2 Gen 1 5Gbps (Type-A)
- USB 3.2 Gen 2×2 20Gbps (Type-C)
- Optical S/PDIF-Out
Dimensions
- 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
- ATX Form Factor
Mounting
9 mounting holes
Operating System
- Support for Windows® 10 64-bit
- Support for Windows® 7 64-bit
- To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
Box content
