Name: MSI B450-A PRO MAX
SKU: 911-7B86-022
Price: 110.50 EUR
Availability: InStock

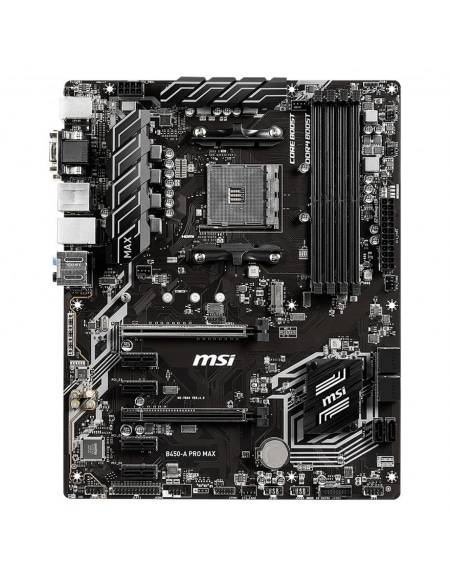

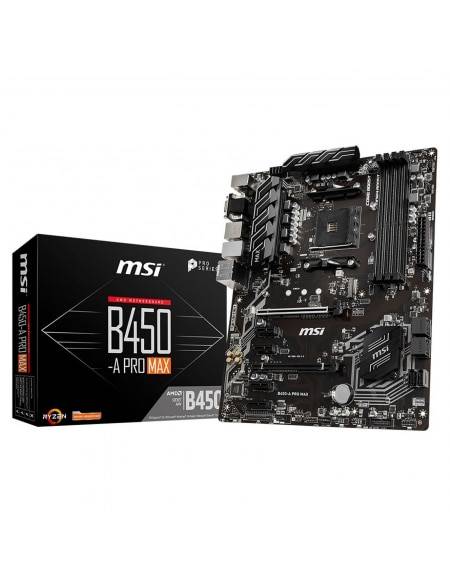

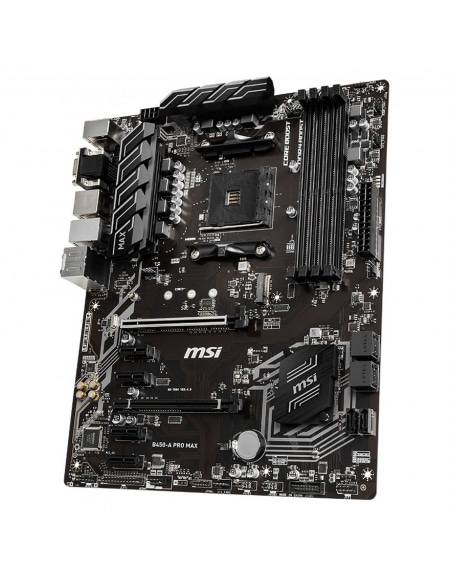

MSI B450-A PRO MAX

110,50€ TTC

La B450-A PRO MAX est une carte mère élégante qui intègre les ports Core Boost, DDR4 Boost, Turbo M.2 et USB 3.2 Gen2. Il dispose d’un chipset AMD B450 et est conçu pour accueillir les processeurs AMD Ryzen 1000/2000/3000 et Athlon GE dans le socket AMD AM4. Il permettra le montage de configurations multimédias, de jeux ou de bureautique à un coût raisonnable.

Marque

MSI

Support du processeur

AMD AM4

Chipset

AMD B450

EAN

4719072665975

Product Documents

Fiche technique

B45-MAX

200 en stock

UGS : 911-7B86-022 Catégorie : Carte mère

Fiche Produit	MSI B450-A PRO MAX
Processeur	Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics/ 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
Chipset	AMD® B450 Chipset
Mémoire	4 x DDR4 memory slots, support up to 64GB Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) For AMD Ryzen Gen3 (R5/R7/R9) Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz(by A-XMP OC MODE) For AMD Other CPU Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz(by A-XMP OC MODE) Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode)
Slots d´extension	1 x PCIe 3.0 x16 slot (PCI_E1) 1st, 2nd and 3rd Gen AMD Ryzen™ support x16 mode Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support x8 mode Athlon™ with Radeon™ Vega Graphics support x4 mode 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode) 4 x PCIe 2.0 x1 slots
Contrôleurs	AMD® CPU 2 x SATA 6Gb/s ports 1 x M.2 slot (Key M) Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s standards 2242/ 2260/ 2280/ 22110 storage device AMD® B450 Chipset 4 x SATA 6Gb/s ports
Réseau	1 x Realtek® 8111H Gigabit LAN controller
Audio	Realtek® ALC892 Codec 7.1-Channel High Definition Audio
Ports USB	AMD® B450 Chipset 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD® CPU 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
Connecteurs interne	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 1 x 4-pin water-pump-fan connector 4 x 4-pin system fan connectors 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Serial port connector 1 x Parallel port connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x 5050 RGB LED strip 12V connector
Connecteurs externe arrière	Flash BIOS Button PS/2 Combo Port VGA Port USB 3.2 Gen1 LAN Port HD Audio Connectors USB 2.0 ports DVI-D Port HDMI Port USB 3.2 Gen2
Système d´exploitation	Support for Windows® 10 64-bit Support for Windows® 7 64-bit
Format	ATX Form Factor

En tant que marque leader du secteur informatique, MSI continue à placer la barre très haut en termes de design et d'innovation de ses produits de gamme Gaming. Ces efforts ont d'ailleurs résulté en un sponsoring de plusieurs équipes de eSport. La collaboration entre les services de recherche et développement et les joueurs professionnels a permis la création de nombre des produits MSI Gaming actuellement sur le marché.

En plus d'être une marque gaming pionnière, MSI a su devenir un partenaire de confiance sur lequel les joueurs pourront compter, que ce soit pour leurs compétitions comme pour leurs besoins quotidiens.

PLUS DE PRODUITS

CASQUE MSI Immerse GH30 V2

49,00€ TTC

MSI 957-1XXXXE-007 – Extension de garantie 1 an supplémentaire

79,99€ TTC

MSI Core Frozr L

54,95€ TTC

MSI Clutch GM11 28,00€ TTC

Retour aux produits

Next product

MSI X470 GAMING PLUS MAX 129,50€ TTC

Marque	MSI
Support du processeur	AMD AM4
Chipset	AMD B450
EAN	4719072665975

Description
Avis (0)
A propos de MSI
Transport & Livraison

Description

Fiche Produit	MSI B450-A PRO MAX
Processeur	Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics/ 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
Chipset	AMD® B450 Chipset
Mémoire	4 x DDR4 memory slots, support up to 64GB Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) For AMD Ryzen Gen3 (R5/R7/R9) Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz(by A-XMP OC MODE) For AMD Other CPU Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz(by A-XMP OC MODE) Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode)
Slots d´extension	1 x PCIe 3.0 x16 slot (PCI_E1) 1st, 2nd and 3rd Gen AMD Ryzen™ support x16 mode Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support x8 mode Athlon™ with Radeon™ Vega Graphics support x4 mode 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode) 4 x PCIe 2.0 x1 slots
Contrôleurs	AMD® CPU 2 x SATA 6Gb/s ports 1 x M.2 slot (Key M) Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s standards 2242/ 2260/ 2280/ 22110 storage device AMD® B450 Chipset 4 x SATA 6Gb/s ports
Réseau	1 x Realtek® 8111H Gigabit LAN controller
Audio	Realtek® ALC892 Codec 7.1-Channel High Definition Audio
Ports USB	AMD® B450 Chipset 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD® CPU 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
Connecteurs interne	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 1 x 4-pin water-pump-fan connector 4 x 4-pin system fan connectors 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Serial port connector 1 x Parallel port connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x 5050 RGB LED strip 12V connector
Connecteurs externe arrière	Flash BIOS Button PS/2 Combo Port VGA Port USB 3.2 Gen1 LAN Port HD Audio Connectors USB 2.0 ports DVI-D Port HDMI Port USB 3.2 Gen2
Système d´exploitation	Support for Windows® 10 64-bit Support for Windows® 7 64-bit
Format	ATX Form Factor
